| Shourt Line by Soft Works Ltd. | |||||
|
Model Railroad Products
|
|||||
SL-TLC1cv DC Analog Throttle - Pure DC output; 0 to 24 V @ 6A
ANY scale - G, O, HO, N, or Z!
Price: $159.95 New
Features: (photos show TLC1 throttle which look identical to the TLC1cv exceipt for graphics)
- AC or DC Input voltage at 10 to 24 volts
- Low noise fan with zero noise at low output power
- 15 amp output stage - conservatively rated at 6 amps continuous
- Low noise, brushless fan with auto speed control
The TLC1cv Throttle uses an input of 10 to 24 volts AC or DC. Cooling is provided by a bushless fan powered by a voltage regulator to allow variable input voltages to match the scale you are using. The throttle employs a 15 amp output stage but is conservatively rated at 6 amps continuous output. This unit is both a table-top and a hand held throttle.
 |
|||

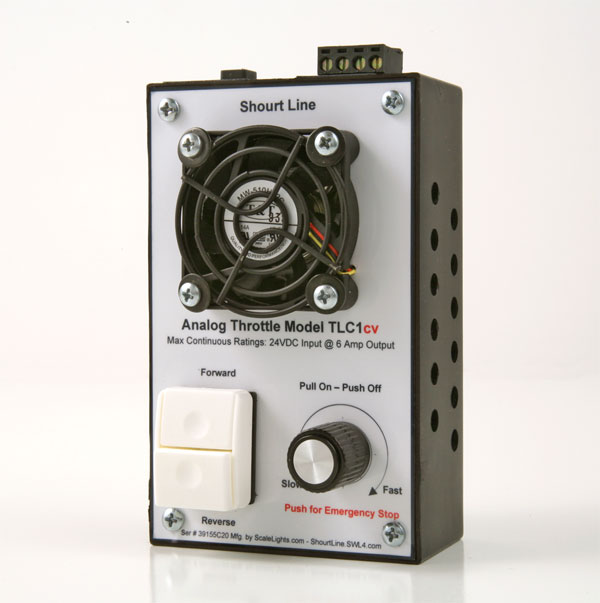

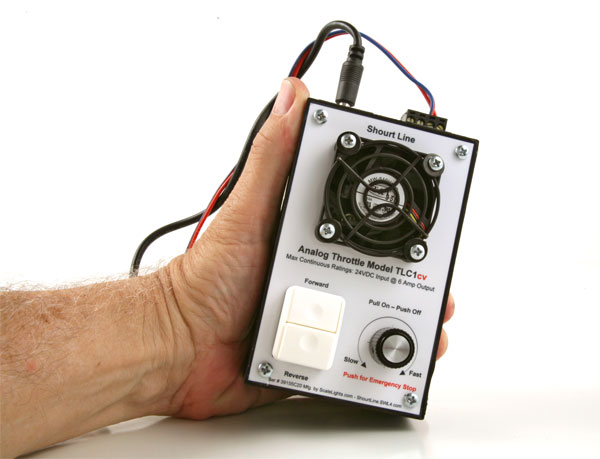

| The picture above shows the tabletop configuration with input/output connectors on top. The connectors can be placed on the bottom in less than two minutes by removing the faceplate and rotating the case 180 degrees as shown below. | |||
 |
|||

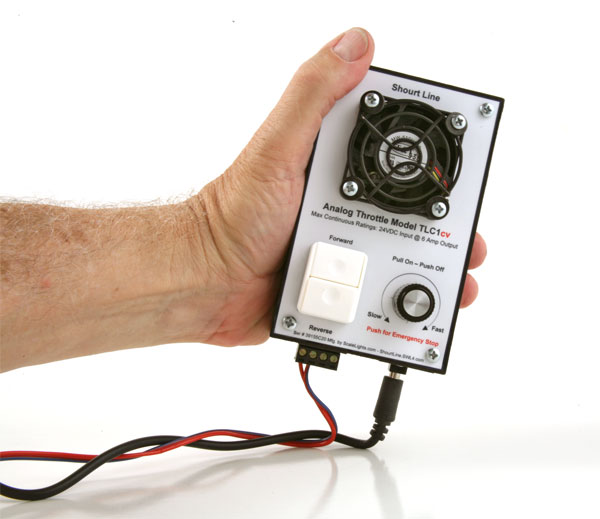

| In this configuration the unit is ideal for a palm held or walk around throttle with the input/output connectors coming out the bottom. | |||
 |
|||
 |
|||
|

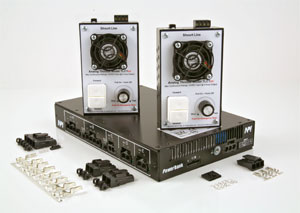

The throttle is a perfect match for our 24V 32.5A 800VA SL-PS800-3-28 32 amp power supply by ShourtLine shown above. The supply has two protected 6.25 amp outputs that match the TCL1cv throttle perfectly. The SL-PS8003-28&TLC2cv shown above includes two throttles. . |
|||
 |
|||
|
The throttle also has a coax input for use with our 20V 3A 60VA SL-PS60-1-20 . Shown above is the SL-PS60-1-20&TLC1cv SET with track clips for fast and easy setup.

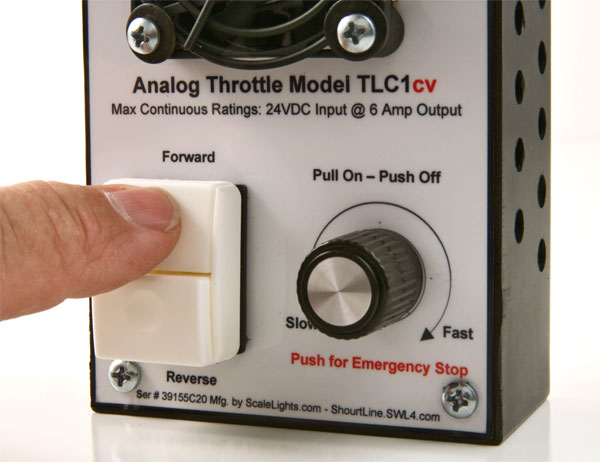

The throttle features a large forward/reverse switch and a quick response throttle. An exclusive emergency stop feature turns off all power output by simply pushing down on the throttle. Pulling the throttle out restores power. |
|||
Mfg: Made in the USA by Scale Lights - Soft Works Ltd.
Input Voltage: `10 to 24 V AC or DC
Input Current: 6 amps continuous at 24 Volts
Output Voltage: 0 to maximum input voltage
Output Current: 6 amps continuous
Cooling: Provided by a low noise, voltage stabilized, speed controlled, ball bearing brushless fan.
Dimensions: 5.25L" x 3.25W" x 1.5"H (2.5H with throttle knob height") Palm Size for optional walk around use.
Weight: 1 Lbs.

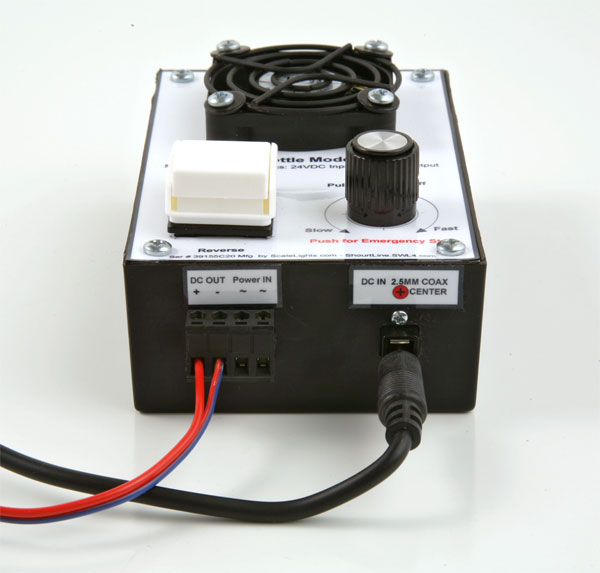

Connectors:
|
||||||

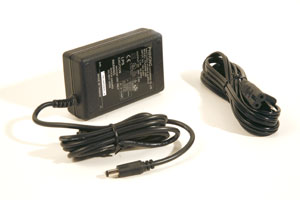

| You may use this coax socket with several of our UL approved power supplies, for total LGB compatibility and 3 amps of power at 20 volts pure DC use our model SL-PS60-1-20 | ||||||
 |
||||||
| SL-PS60-1-20
20V 3A 60VA |
||||||

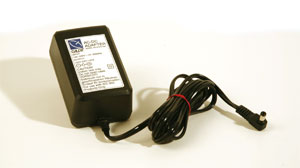

| For the maximum voltage of 24 volts and 1.67 amps of power use our model SL-PS36-1-24 | ||||||
 |
||||||
| SL-PS36-1-24
24V 1.67A 36VA |
||||||
| You may also use similar rated sources of DC power that have a standard 2.5mm plug size. Battery power may also be used but an in line fuse of 6 amps must be installed to avoid overloading your locos or throttles. | ||||||
|
||||||
| Two terminals are available for input power when the coax power jack is not used. These are used to connect the throttle with the SL-PS200-1-27 tor he SL-PS800-3-28 power supply by ShourtLine as shown below. | ||||||
 |
||||||
| SL-PS200-1-27
24V 8.3A 200VA |
||||||

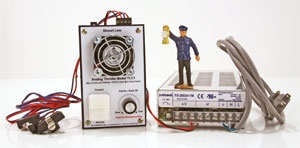

| SL-PS200-1-27&TLC1cv&Track Clips
24V 8.3A 200VA |
||||||
 |
||||||
| SL-PS300-1-27
24V 12.5A 300VA |
||||||

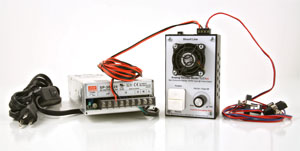

| SL-PS300-1-27&TLC1cv&Track Clips
24V 12.5A 300VA |
||||||
 |
||||||
| SL-PS800-3-28
24V 32.5A 800VA |
||||||
| PS800-3-29&TLC2cv&Track Clips
24V 8.3A 200VA |
||||||
| The other two terminals provide adjustable continuous pure DC power to your LGB trains or other DC loads. | ||||||
