G SCALE PIKO 35013 LGB OK 4 Ch Switch Decoder NEW
PIKO 35013 Switch Decoder
- Environmentally Sealed
- Weatherproof
- Wireless Control with PIKO Navigator
- Large Easy to Wire terminal strip
- 4 Output Channels
- Easy CV Programming via PIKO Central Station & Navigator
- LGB Compatible Operation
New in PIKO factory sealed box
Click here for all PIKO Products
Shourt Line Direct Discount Price: $111.99 NEW MSRP $139.99
Factory sealed from ShourtLine.com, an authorized PIKO Dealer, PLUS a free G-Scale surprise with every order and every item is on sale every day!
For questions or details on this or any of our over 400 PIKO, in stock, new factory sealed items Call 310-622-4431
Features:
Indoor/Outdoor weatherproof case - quick and easy install for any G Scale MTS or DCC system.
Features:
- Made in GERMANY
- 2 year guarantee by PIKO America
- Weather & Water Proof for Indoor and Outdoor operation
- Easy Setup
- Works with any G scale track
- Installs in seconds
- LGB Compatible
- DCC Compatible
- Indoor or Outdoor use
- 4 Outputs to operate up to 4 pairs of switch motor motors or signals
Specifications:
- 12-24V NMRA DCC or LGB MTS compatible
- Total Current capacity 3 amps maximum
- 4 Outputs at 1.5 amps maximum
- 2 switch machine (PIKO 25271) per output
- Operate either motor-drive or twin-solenoid switch machines
- Switch addresses: 1 through 2047 per NMRA-DCC standards
- Dimensions: 95 x 64 x 23 (3.74" x 2.54" x .091")
MTS/DCC ready
Complete with instructions shown above
New in dealer in PIKO factory sealed packages
How to hookup the PIKO G Scale Track Power Clamps:
Easy to wire to track powered from an MTS/DCC controller or booster and up to 4 paris of any type switch motor

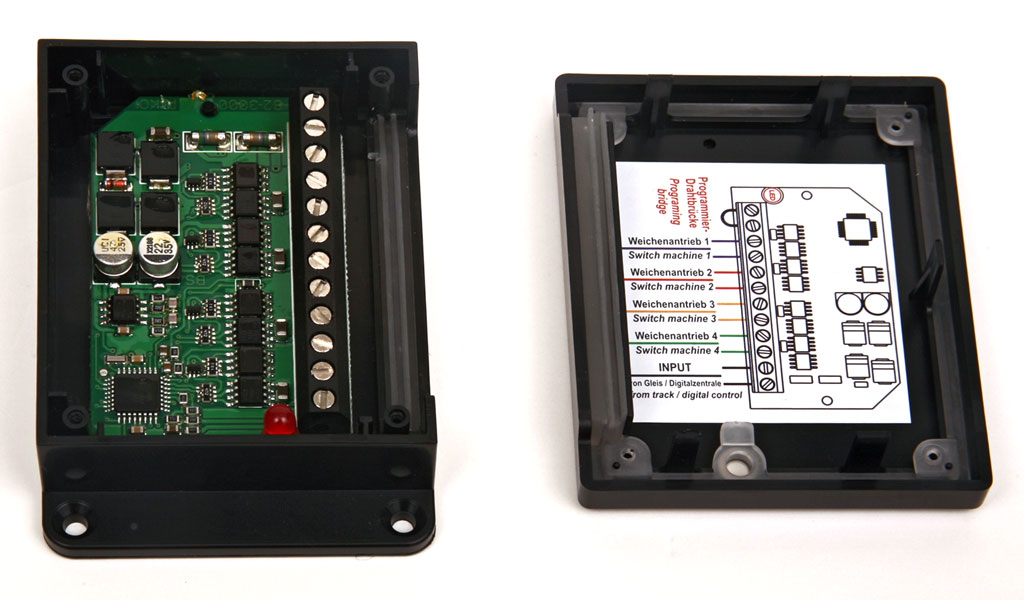

.1) Remove the top 4 screws and the top of the case revealing the circuit board & instructions inside the case.

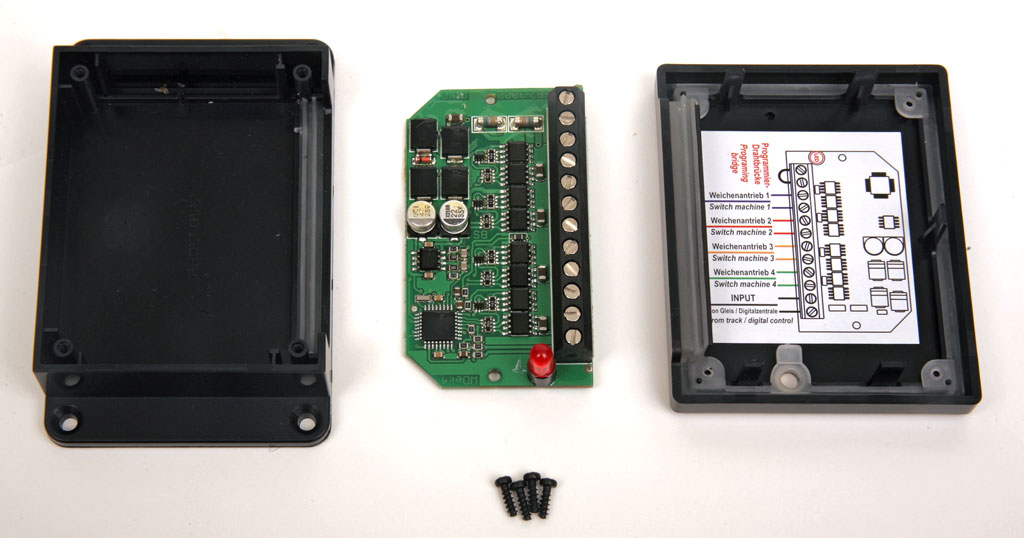

2) Circuit board is easily removed or can be wired in the case bottom as shown above
Note the water proof seals and 4 soft rubber blades that seal wires from the weather and water when the top is replaced and screwed closed - the LED shows through the rubber seal in the top of the case for status indication
3) Wire to switch or solenoid motors and to track for power and DCC control.

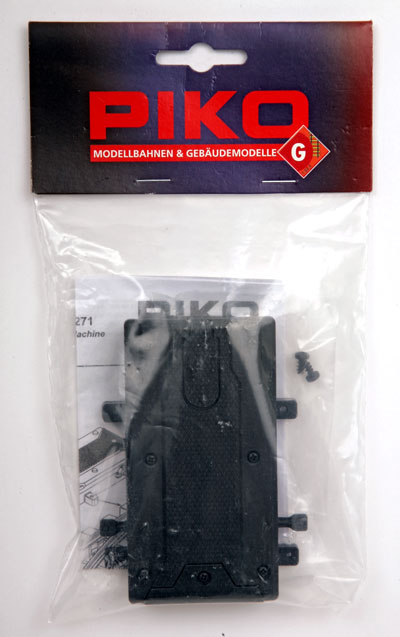

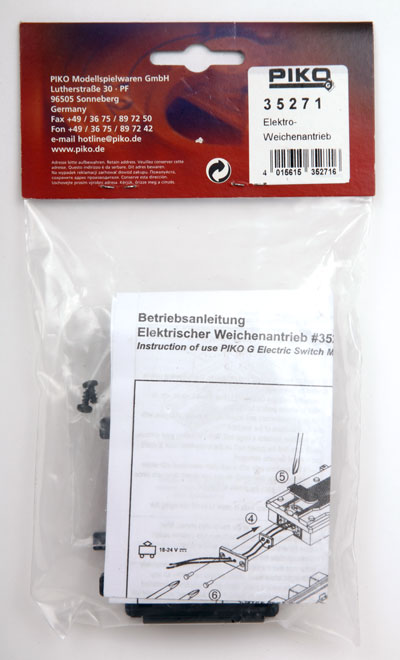

Use the PIKO 35271 Electric Switch Machine for weather proof and waterproof maintenance free operation of your switch tracks (points) and/or signals
4) Optionally use your PIKO Central Station to change the switch addresses as desired by CV register configuration.
Connect the track terminals of your PIKO DCC Central Station to the power terminals of your PIKO Switch Decoder. Connect a wire to jumper between the top two terminals for programming programming and remove jumper to operate.
4) Connect power and operate you switch tracks using the wireless PIKO Navigator (see Navigator product for details)

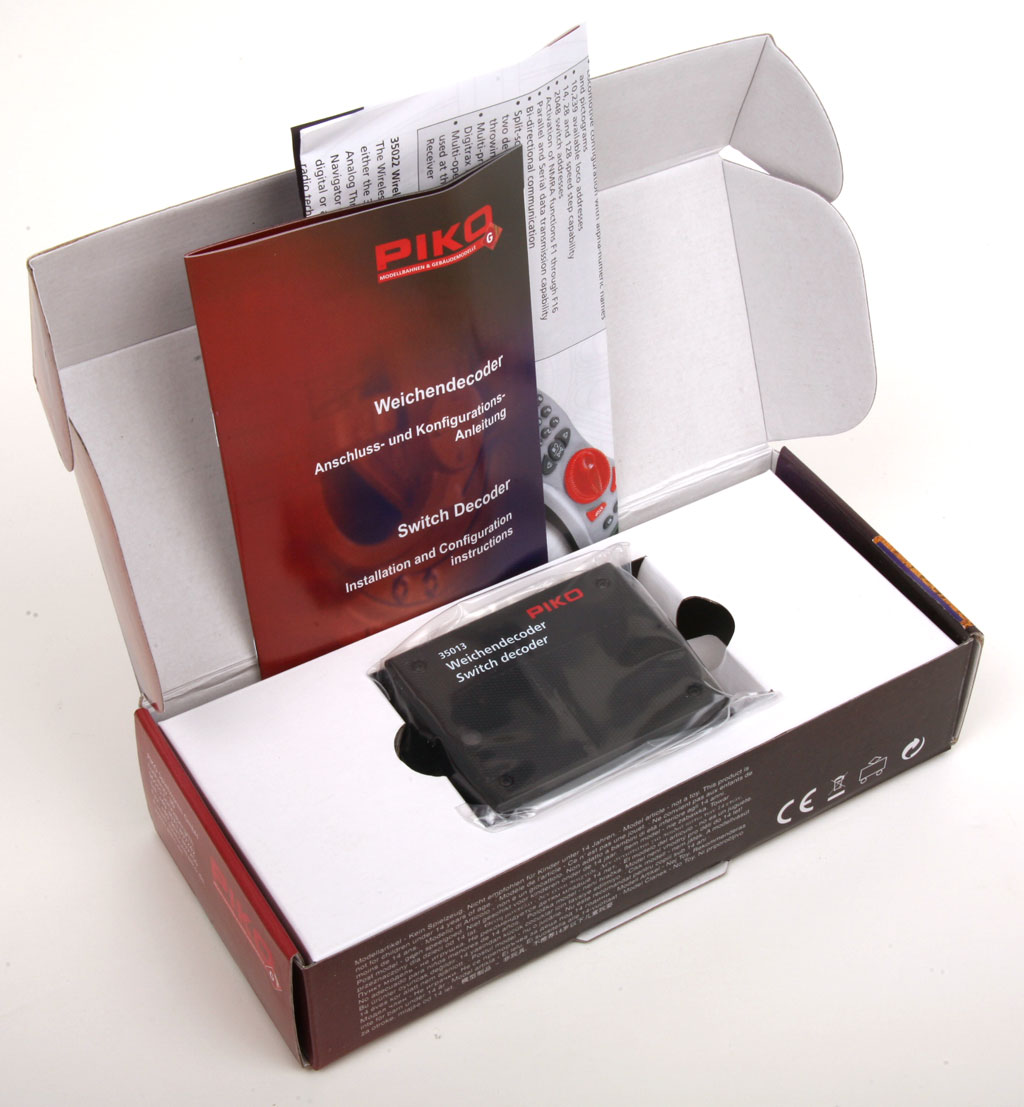

Comes in a sealed factory box, complete with easy to follow programming and operating instructions. Wireless operate all your switch tracks and signals with the PIKO Digital System. Made in Germany
