G Scale LGB 55085 DC DCC MTS Reverse Loop Module w Isolation Rail Parts
For DCC MTS or Analog Layouts
Identical features and functions to Massoth 8157001 at lower cost and real 2 yr warranty - A Best Buy
Everything included with the set for easy setup and automatic reverse loop operation with analog or DCC/MTS track power.

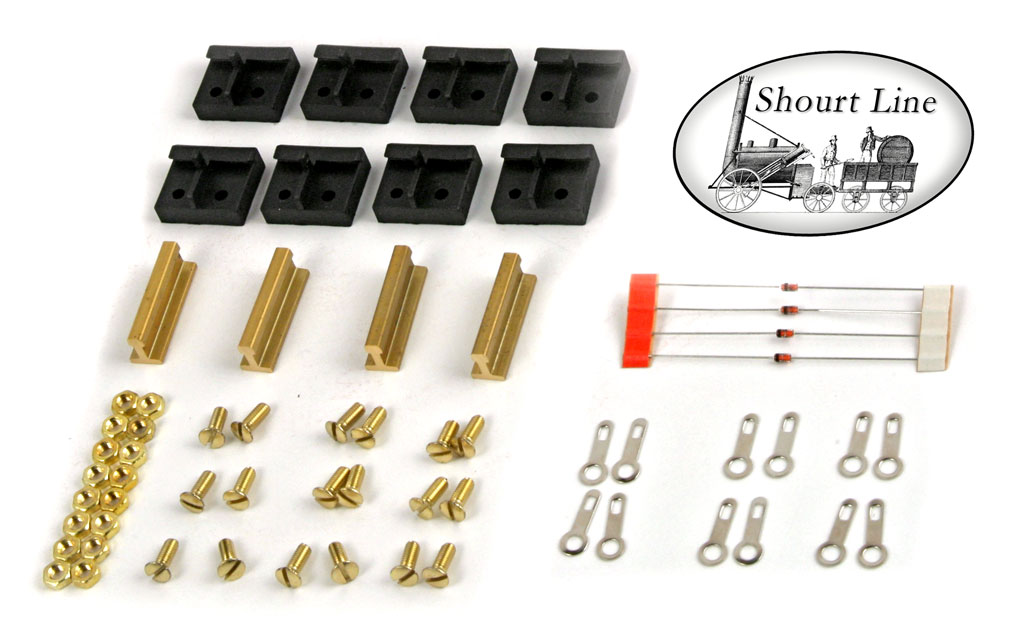

This set includes all the parts required to install sensors for arc fee reverse loop DCC operation. The parts create 8 each isolation blocks for the 4 each included brass sensor rails shown above. 4 diodes are also included in the factory sealed bag. Photo above is from our demo unit.

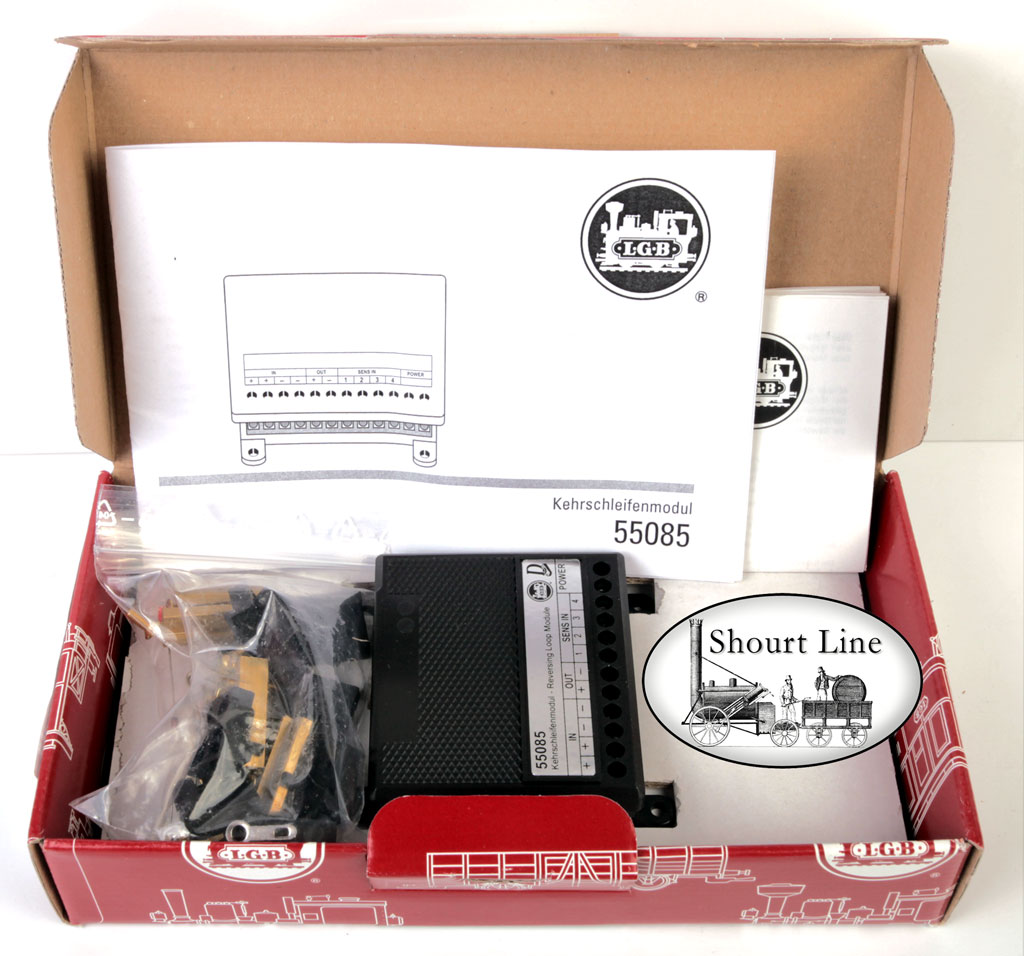

New in the box. Factory sealed parts bag, manual, reverse module and documents from the ShourtLine.com, an authorized LGB dealer.
Shourt Line Direct Discount Price: $129.95 NEW - We rate this reverse loop set a BEST BUY
For questions or details on this or any of our over 6000 G Scale items email info@ShourtLIne.com or Call 310-622-4431
Description:
New reverse loop module for the new digital LGB system world. You can switch the reverse loop on your digital layout automatically and free of short circuits. You will protect your digital layout and your rolling stock in the process. One more advantage of the reverse loop module: Several reverse loops can be used simultaneously on the layout. Reverse loop modules in use, up to now cause a short circuit when the train enters the reverse loop and force the polarity of the track to switch by causing a break in the voltage, example: 55080. This newly designed DC/DCC/MTS reverse loop module by comparison switches free of short circuits; and interruption of the voltage in the track is avoided. The overloading of the DCC or MTS central unit by the intentionally caused short circuit is thereby a thing of the past. This protects other track components such as locomotive decoders, turnout decoders, and the electronics customarily installed in locomotives and cars. This module is compatible with the previous components.
Due to technical changes, the previous MTS reverse unit model (LGB 55081) is being discontinued and replaced by the new 55085 version. This new module is suitable for analog operation. We rate this product a BEST BUY.
Features:
- Made in GERMANY
- LGB 2yr Warranty Included
- Electronic module for operation of reverse loops or Y tracks in digital operation switches
- No Short circuits when used with the 4 sensors included with set
- Switching by means of short circuit recognition can be turned on as an option.
- Can be used with analog train operation.
- DC track voltage 0- 27 volts DC
- Supplemental voltage for DC analog operation 14 - 24 volts DC
- New in a factory sealed package
Specifications:
- DCC track voltage 14 to 24 volts AC
- DC track voltage 0- 27 volts DC
- Supplemental voltage for DC analog operation 14 - 24 volts DC
- This product is not weatherproof and must be protected from moisture.
- Dimensions: 80 x 70 x 20 mm / 3-1/8” x 2-3/4” x 3/4”
Instructions: Click here to view LGB manual and instructions
Comes with the Shourt Line SL8453303 Precision Train Throttle that has a 3 inch wire connections for powering the shuttle and 10 foot black power input cable and full wave bridge rectifier the 25 turn pot on the SL8453303 makes setting your train speed precise and easy.
